#include <mmohighlight.hpp>

Inheritance diagram for MmoHighlighter:

Collaboration diagram for MmoHighlighter:

Classes
struct	MmoHighlightingRule

Public Types
using	h_type = enum { MMO_MODEL, MMO_LOG }

Public Member Functions
	MmoHighlighter (QTextDocument *parent=nullptr, h_type file=MMO_MODEL)

Protected Member Functions
void	initialize (h_type file)

void	addHighlightingRule (const QString &pattern, const QTextCharFormat &format, bool bold=true)

void	setupModelHighlighting ()

void	setupLogHighlighting ()

void	highlightBlock (const QString &text) override

void	highlightSyntax (const QString &text)

void	highlightComments (const QString &text)

Private Attributes
QVector< MmoHighlightingRule >	_highlighting_rules

QRegularExpression	_comment_start_expression

QRegularExpression	_comment_end_expression

QTextCharFormat	_single_line_comment_format

Static Private Attributes
static const QStringList	_model_keywords

static const QStringList	_model_functions

static const QStringList	_model_annotations = {"annotation", "experiment"}

static const QStringList	_model_qss_tags

static const QStringList	_log_keywords

Detailed Description

Definition at line 27 of file mmohighlight.hpp.

Member Typedef Documentation

◆ h_type

using MmoHighlighter::h_type = enum { MMO_MODEL, MMO_LOG }

Definition at line 47 of file mmohighlight.hpp.

Constructor & Destructor Documentation

◆ MmoHighlighter()

MmoHighlighter::MmoHighlighter	(	QTextDocument *	parent = `nullptr`,
		h_type	file = `MMO_MODEL`
	)

Definition at line 144 of file mmohighlight.cpp.

References initialize().

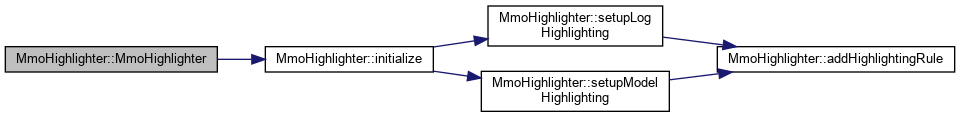

Here is the call graph for this function:

Member Function Documentation

◆ addHighlightingRule()

void MmoHighlighter::addHighlightingRule	(	const QString &	pattern,
		const QTextCharFormat &	format,
		bool	bold = `true`
	)

protected

Definition at line 160 of file mmohighlight.cpp.

References _highlighting_rules, MmoHighlighter::MmoHighlightingRule::format, and MmoHighlighter::MmoHighlightingRule::pattern.

Referenced by setupLogHighlighting(), and setupModelHighlighting().

◆ highlightBlock()

void MmoHighlighter::highlightBlock ( const QString & text )

overrideprotected

Definition at line 221 of file mmohighlight.cpp.

References highlightComments(), and highlightSyntax().

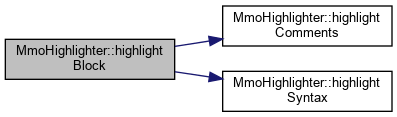

Here is the call graph for this function:

◆ highlightComments()

void MmoHighlighter::highlightComments ( const QString & text )

protected

Definition at line 242 of file mmohighlight.cpp.

References _comment_end_expression, and _comment_start_expression.

Referenced by highlightBlock().

◆ highlightSyntax()

void MmoHighlighter::highlightSyntax ( const QString & text )

protected

Definition at line 227 of file mmohighlight.cpp.

References _highlighting_rules.

Referenced by highlightBlock().

◆ initialize()

void MmoHighlighter::initialize ( h_type file )

protected

Definition at line 146 of file mmohighlight.cpp.

References _comment_end_expression, _comment_start_expression, setupLogHighlighting(), and setupModelHighlighting().

Referenced by MmoHighlighter().

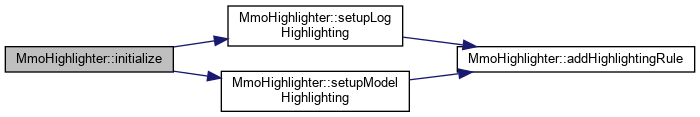

Here is the call graph for this function:

◆ setupLogHighlighting()

void MmoHighlighter::setupLogHighlighting ( )

protected

Definition at line 210 of file mmohighlight.cpp.

References _log_keywords, and addHighlightingRule().

Referenced by initialize().

Here is the call graph for this function:

◆ setupModelHighlighting()

void MmoHighlighter::setupModelHighlighting ( )

protected

Definition at line 169 of file mmohighlight.cpp.

References _model_annotations, _model_functions, _model_keywords, _model_qss_tags, _single_line_comment_format, and addHighlightingRule().

Referenced by initialize().

Here is the call graph for this function:

Member Data Documentation

◆ _comment_end_expression

QRegularExpression MmoHighlighter::_comment_end_expression

private

Definition at line 75 of file mmohighlight.hpp.

Referenced by highlightComments(), and initialize().

◆ _comment_start_expression

QRegularExpression MmoHighlighter::_comment_start_expression

private

Definition at line 74 of file mmohighlight.hpp.

Referenced by highlightComments(), and initialize().

◆ _highlighting_rules

QVector<MmoHighlightingRule> MmoHighlighter::_highlighting_rules

private

Definition at line 73 of file mmohighlight.hpp.

Referenced by addHighlightingRule(), and highlightSyntax().

◆ _log_keywords

const QStringList MmoHighlighter::_log_keywords

staticprivate

Initial value:

= {"-",          "Additional",  "Allocated",      "allocated",   "Average",
                                                   "Begin",      "by",          "changes",        "cost",        "CPU",
                                                   "crossing",   "Crossings",   "DASSL",          "data",        "dependencies",
                                                   "derivative", "derivatives", "detected",       "done",        "Dt",
                                                   "dt",         "efficiency",  "Estimated",      "evaluations", "Event",
                                                   "events",     "Events",      "execution",      "external",    "External",
                                                   "for",        "Function",    "function",       "Handler",     "Individual",
                                                   "Init",       "Initial",     "Initialization", "Initialize",  "input",
                                                   "iterations", "Jacobian",    "load",           "LP",          "LPS",
                                                   "max",        "memory",      "messages",       "Messages",    "Miliseconds",
                                                   "min",        "ms",          "Newton",         "next",        "output",
                                                   "Output",     "Parallel",    "Partitioning",   "past",        "per",
                                                   "performed",  "Processed",   "reinits",        "reported",    "Results",
                                                   "Save",       "Scalar",      "Seconds",        "sent",        "sequential",
                                                   "Simulation", "simulation",  "solver",         "speedup",     "State",
                                                   "state",      "Statistics",  "step",           "steps",       "sum",
                                                   "time",       "Time",        "Total",          "transition",  "transitions",
                                                   "value",      "values",      "Variable",       "variable",    "variables",
                                                   "Variables",  "Zero"}

Definition at line 70 of file mmohighlight.hpp.

Referenced by setupLogHighlighting().

◆ _model_annotations

const QStringList MmoHighlighter::_model_annotations = {"annotation", "experiment"}

staticprivate

Definition at line 68 of file mmohighlight.hpp.

Referenced by setupModelHighlighting().

◆ _model_functions

const QStringList MmoHighlighter::_model_functions

staticprivate

Initial value:

= {"abs",     "acos",   "asin",  "atan", "atan2", "ceil", "conh", "cos",      "der",
                                                      "div",     "exp",    "floor", "log",  "log10", "max",  "min",  "mod",      "pre",
                                                      "product", "reinit", "sin",   "sinh", "sum",   "tan",  "tanh", "terminate"}

Definition at line 67 of file mmohighlight.hpp.

Referenced by setupModelHighlighting().

◆ _model_keywords

const QStringList MmoHighlighter::_model_keywords

staticprivate

Definition at line 66 of file mmohighlight.hpp.

Referenced by setupModelHighlighting().

◆ _model_qss_tags

const QStringList MmoHighlighter::_model_qss_tags

staticprivate

Initial value:

= {
    "CI_Dense",    "CI_Sampled", "CI_Step",   "CQSS",      "CVODE_AM",  "CVODE_BDF", "DASSL",     "Dense",  "DOPRI",  "false",
    "HMetis",      "IDA",        "KaHIP",     "LIQSS",     "LIQSS2",    "LIQSS3",    "LIQSS_BDF", "Manual", "Metis",  "mLIQSS",
    "mLIQSS2",     "MTPL",       "MTPL_IT",   "Patoh",     "QSS",       "QSS2",      "QSS3",      "QSS4",   "Scotch", "SD_DT_Asynchronous",
    "SD_DT_Fixed", "Sparse",     "ST_Binary", "ST_Linear", "ST_Random", "true"}

Definition at line 69 of file mmohighlight.hpp.

Referenced by setupModelHighlighting().

◆ _single_line_comment_format

QTextCharFormat MmoHighlighter::_single_line_comment_format

private

Definition at line 76 of file mmohighlight.hpp.

Referenced by setupModelHighlighting().

The documentation for this class was generated from the following files:
